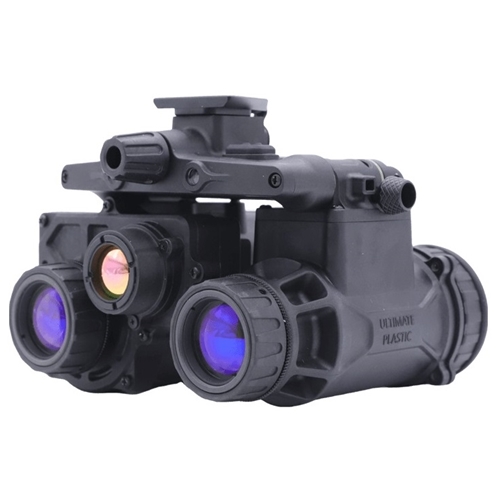

RIX RENV-B Fusion 640 Thermal and Night Vision Binocular HOUSING ONLY

Optics - Magnification, ×
1
Optics - Exit Pupil Diameter, mm
14
Optics - Exit Pupil Distance, mm
25
Optics - Adjustment, D
-3~+2
I2 - FOV, °
40
I2 - Lens System, mm
f/1.2, 25
I2 - Range of Focus, yd
0.27 to infinity
I2 - Brightness Control
Yes
I2 - Bright source protection
Yes
I2 - Infrared Illuminator
Built-in
Thermal Image - Type
VOx Uncooled
Thermal Image - Resolution, pixels
640×512
Thermal Image - Pixel pitch, μm
12
Thermal Image - NETD, mK
＜30
Thermal Image - Frame Rate, Hz
50
Thermal Image - Lens System, mm
f/1.1, 16
Thermal Image - FOV, °
25.8×19.1
Thermal Image - Brightness Control
Yes
Thermal Image - Polarity
White hot，Orange hot
Enhanced - Mode
Outline, Highlight, Breath
Sensor - Azimuth Indication
Yes
Display - Type
OLED
Display - Resolution, pixels
800×600
Detection Range, m/yd
1500m/1640yd
Degree of Protection, lP code
IP67
Operating Temperature Range, -F
-40 to 122
Battery Type
18650×2
Operating Time on Battery Pack (at t=72°F) , h
Enhanced Display ≥ 8 hours，I2 up to 60 hours
Dimensions, inch
4.2×4.5×3.3
Weight, lb
Main body:1.26Ib，Battery pack≤0.23Ib (without battery)

Detail enhancement and target recognition

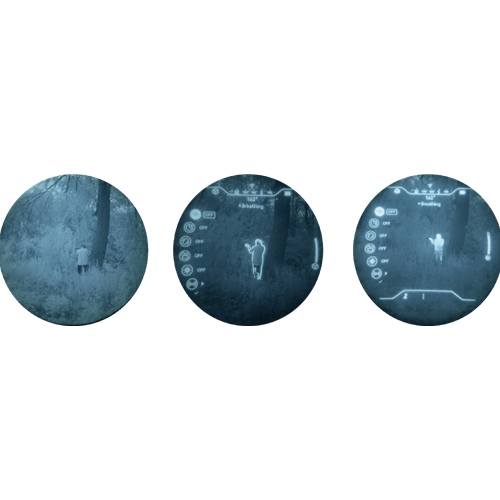

Selection of thermal view channel, I2 night vision channel, or both them combined with multiple fusion modes switchable
12 μm, 640x512 high-sensitivity thermal detector
It can be mounted on a helmet
Thermal Sensor Resolution: 640x512
Detection distance about 1500m/1640yd
0.6 OLED Resolution: 800x600
BSP Bright source protection
Infrared llluminator
Azimuth Indication
Pitch/Inclination angle

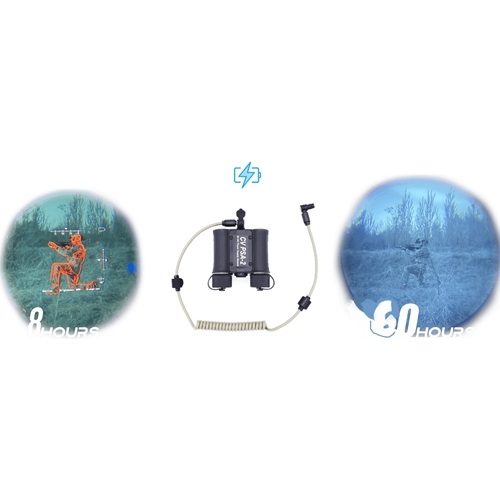

18650*2 replaceable battery
Operating time: Enhanced Display ≥ 8 hours;I2 up to 100 hours
Engineered with IP67 waterproof
Operating Temperature Range: -40 to 122 °F
